The Ultimate Guide to USB Speeds: USB 2.0 vs. USB 3.0 Explained

Technology1171 views
The Ultimate Guide to USB Speeds: USB 2.0 vs. USB 3.0 Explained

Universal Serial Bus (USB) technology has revolutionized the way we connect devices to our computers. Over the years, USB technology has evolved significantly, with USB 2.0 and USB 3.0 being two prominent versions. Both have their unique features and benefits, but understanding the differences between them can help you make an informed choice for your devices and peripherals. This article explores the key differences between USB 2.0 and USB 3.0.

Introduction to USB Technology

USB, an industry standard for short-distance digital data communications, allows electronic devices to be connected via cables to transfer data and power. It is widely used due to its ease of use, versatility, and universal compatibility.

It released in 1996. USB was designed to standardize the connection of peripherals like keyboards, pointing devices, digital still and video cameras, printers, portable media players, disk drives and network adapters to personal computers, both to communicate and to supply electric power.

It has largely replaced interfaces such as serial ports and parallel ports and has become commonplace on a wide range of devices. USB connectors have been increasingly replacing other types for battery chargers of portable devices.

The USB standard is currently maintained by the USB Implementers Forum (USB IF). There have been three generations of USB specifications: USB 1.x, USB 2.0, USB 3.x.

USB3.0 was released in November 2008, almost eight years after the release of USB 2.0. Over five years later, in 2014, USB 3.1 was released with widespread use expected in 2015.

What is USB 2.0?

USB 2.0, released in April 2000, is the second major version of the USB standard. It significantly improved the speed and performance of data transfer compared to its predecessor, USB 1.1.

Key Features of USB 2.0:

  • Data Transfer Speed: Up to 480 Mbps (Megabits per second), also known as High-Speed USB.
  • Compatibility: Backward compatible with USB 1.1 devices.
  • Power Output: Provides up to 2.5 watts (5V, 500mA) of power to connected devices.
  • Connectors: Uses Type-A and Type-B connectors, along with Mini and Micro USB connectors for smaller devices.

What is USB 3.0?

USB 3.0, introduced in November 2008, is the third major version of the USB standard. It brought substantial improvements in data transfer speed and power management over USB 2.0.

Key Features of USB 3.0:

  • Data Transfer Speed: Up to 5 Gbps (Gigabits per second), also known as SuperSpeed USB.
  • Compatibility: Backward compatible with USB 2.0 devices.
  • Power Output: Provides up to 4.5 watts (5V, 900mA) of power to connected devices.
  • Connectors: Uses new connectors with additional pins for faster data transfer, including Type-A, Type-B, and Micro USB 3.0 connectors.

Key Differences Between USB 2.0 and USB 3.0

1. Data Transfer Speed

  • USB 2.0: Maximum speed of 480 Mbps.
  • USB 3.0: Maximum speed of 5 Gbps, more than 10 times faster than USB 2.0. This means significantly faster file transfers, especially for large files.

2. Power Management

  • USB 2.0: Provides up to 2.5 watts of power, sufficient for most small peripherals like keyboards and mice.
  • USB 3.0: Provides up to 4.5 watts of power, enabling it to support more power-hungry devices and faster charging for portable devices.

3. Connectors

  • USB 2.0: Standard connectors include Type-A, Type-B, Mini USB, and Micro USB.
  • USB 3.0: New connectors with additional pins (five extra pins) to facilitate higher data transfer rates. The connectors are usually blue inside to distinguish them from USB 2.0 connectors.

4. Backward Compatibility

  • USB 2.0: Fully compatible with USB 1.1 devices.
  • USB 3.0: Fully backward compatible with USB 2.0 devices, though at the lower USB 2.0 speeds and power levels.

5. Performance

  • USB 2.0: Suitable for most basic peripheral connections like keyboards, mice, and simple external storage devices.
  • USB 3.0: Ideal for high-performance applications such as external hard drives, SSDs, and video capture devices, which benefit from the higher data transfer rates.

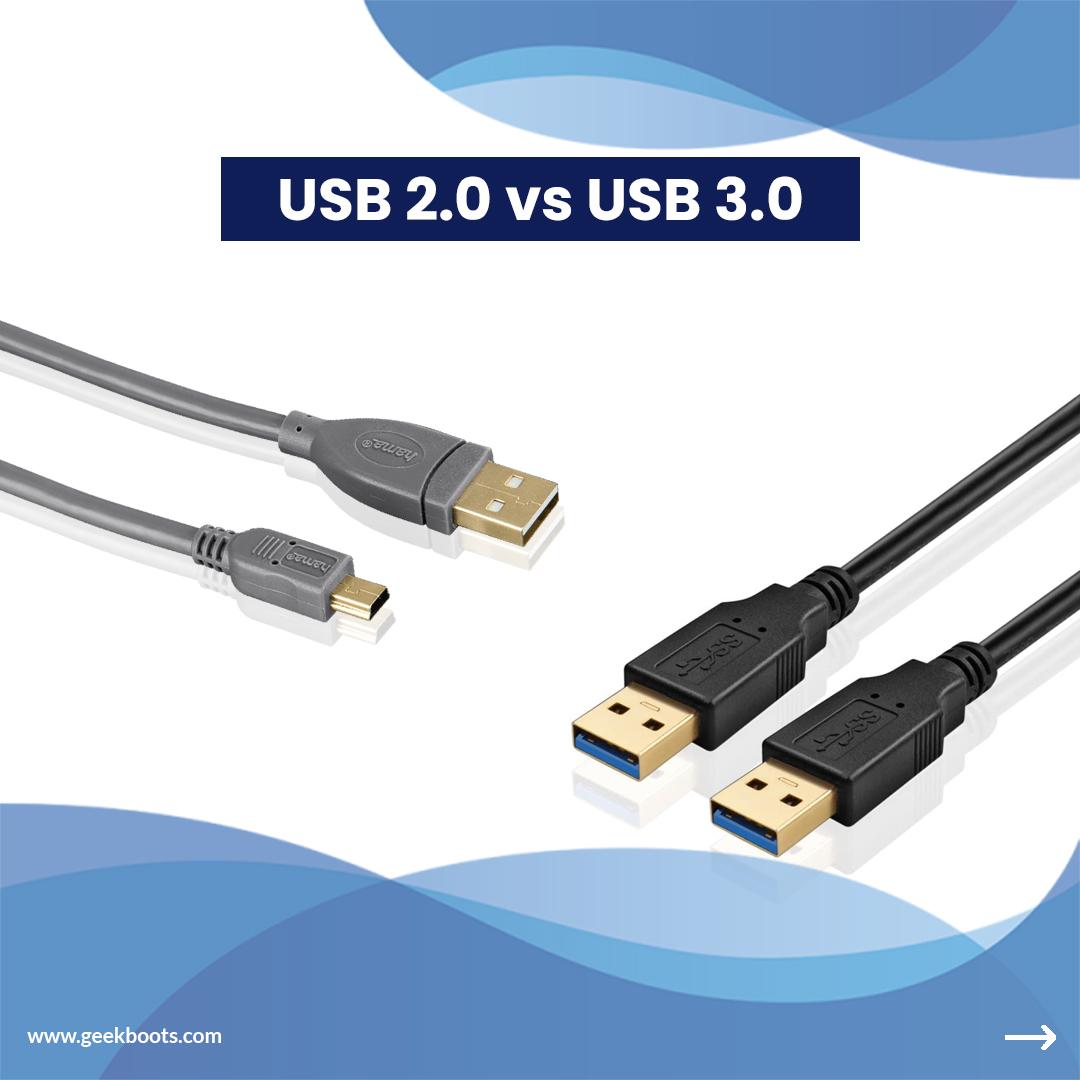

6. Cable and Connector Differences

  • USB 2.0: Standard cables and connectors are sufficient for most tasks.
  • USB 3.0: Requires new cables and connectors with additional wiring to achieve higher speeds, though they are physically similar to USB 2.0 connectors with extra pins.

7. Power Efficiency

  • USB 2.0: Basic power management features.
  • USB 3.0: Improved power efficiency with better power management and reduced idle power consumption.

Practical Implications

For users, the differences between USB 2.0 and USB 3.0 translate to real-world benefits:

  • Faster Data Transfer: USB 3.0 significantly reduces the time needed to transfer large files, such as high-definition videos and large data sets.
  • Enhanced Device Performance: Devices like external SSDs and high-resolution webcams perform better with USB 3.0.
  • Increased Power Availability: USB 3.0 can power more demanding devices and charge portable gadgets faster.

Choosing the Right Standard for Your Needs

The best USB standard for you depends on your usage habits:

  • Everyday Tasks: For basic file transfers like documents, photos, or music, USB 2.0 might suffice.
  • Moving Large Files: If you frequently transfer large video files, high-resolution images, or extensive data backups, the speed boost of USB 3.0 is a worthwhile investment.
  • Powering Devices: If you need a USB port to power devices like external hard drives, opting for USB 3.0 ensures sufficient power delivery.

Conclusion

While USB 2.0 remains widely used and sufficient for many everyday tasks, USB 3.0 offers substantial improvements in speed, power management, and performance. For applications requiring high-speed data transfer and efficient power delivery, USB 3.0 is the better choice. Understanding these differences can help you make informed decisions about which USB standard best suits your needs, ensuring you get the most out of your devices and peripherals.
