SQL Joins: Unveiling the Power of Connecting Data

Database0 views
SQL Joins: Unveiling the Power of Connecting Data

Structured Query Language (SQL) is a language that used to design relational database architects, allowing developers and data professionals to interact with and manipulate data. In an SQL database like MySQL, Sybase, Oracle, or IBM DM2 - SQL executes queries, retrieves data, and edits data by updating, deleting, or creating new records.

It's a lightweight, declarative language that does a lot of heavy lifting for the relational database, acting as a database’s version of a server-side script. SQL databases remain popular because they fit naturally into many venerable software stacks, including the LAMP and Ruby-based stacks. These databases are well understood and widely supported, which can be a major advantage if you run into problems. Among SQL's powerful features, joins play a pivotal role in combining data from multiple tables. In this article, we'll talk about the SQL joins and unraveling their types and applications in relational databases.

What are Joins?

In relational databases, data is often distributed across multiple tables. SQL joins provide a mechanism to bring together related data from these tables, facilitating comprehensive analysis and reporting. They act like bridges, linking rows from different tables based on a shared column, allowing you to retrieve and analyze combined datasets.

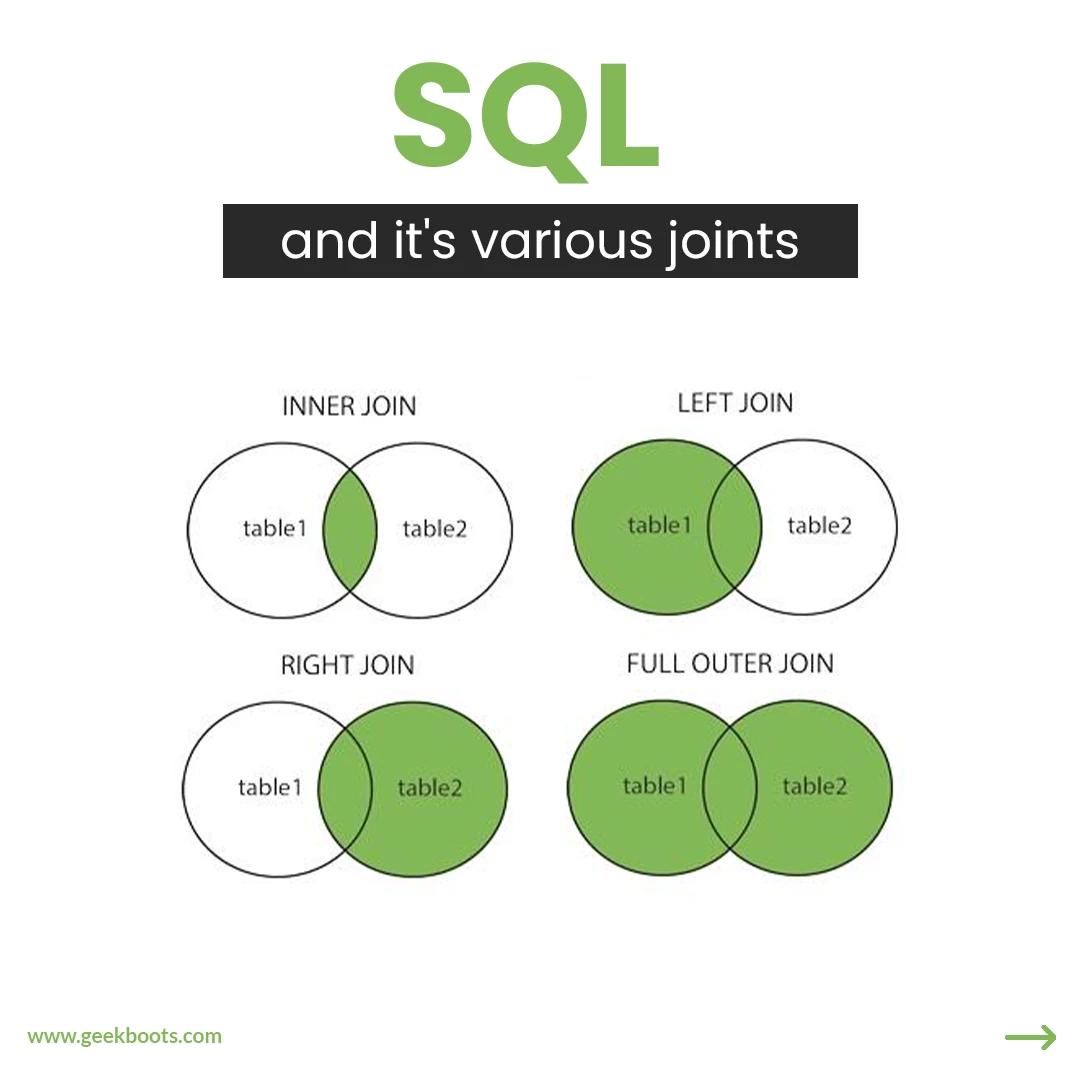

Types of SQL Joins

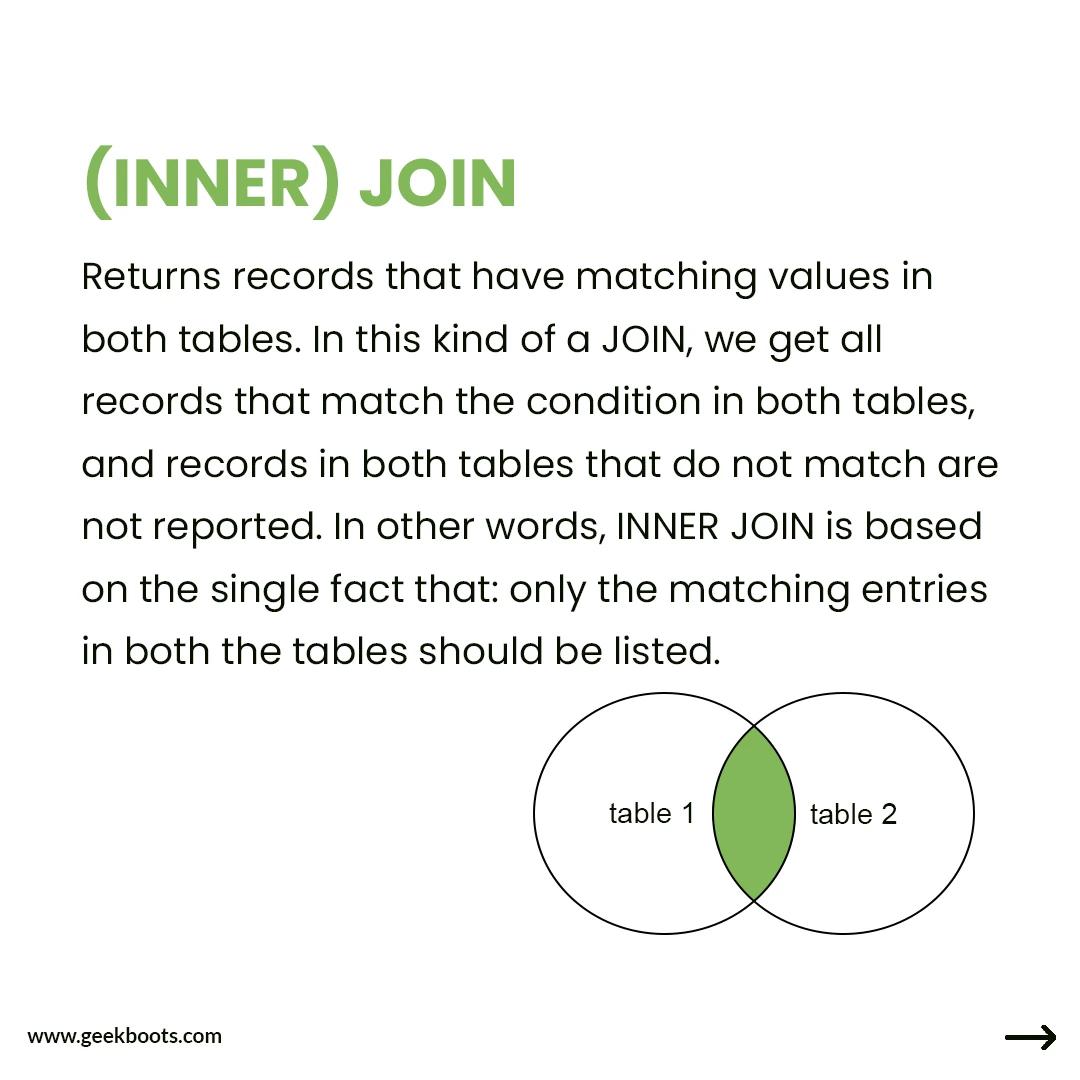

1. INNER JOIN

Returns records that have matching values in both tables. In this kind of a JOIN, we get all records that match the condition in both tables, and records in both tables that do not match are not reported. In other words, INNER JOIN is based on the single fact that: only the matching entries in both the tables should be listed.

SELECT employees.id, employees.name, departments.department_name FROM employees INNER JOIN departments ON employees.department_id = departments.id;

2. OUTER JOIN

OUTER JOIN retrieves. Either, the matched rows from one table and all rows in the other table Or, all rows in all tables (it doesn't matter whether or not there is a match). In other words, OUTER JOIN is based on the fact that: ONLY the matching entries in ONE OF the tables (RIGHT or LEFT) or BOTH of the tables(FULL) should be listed.

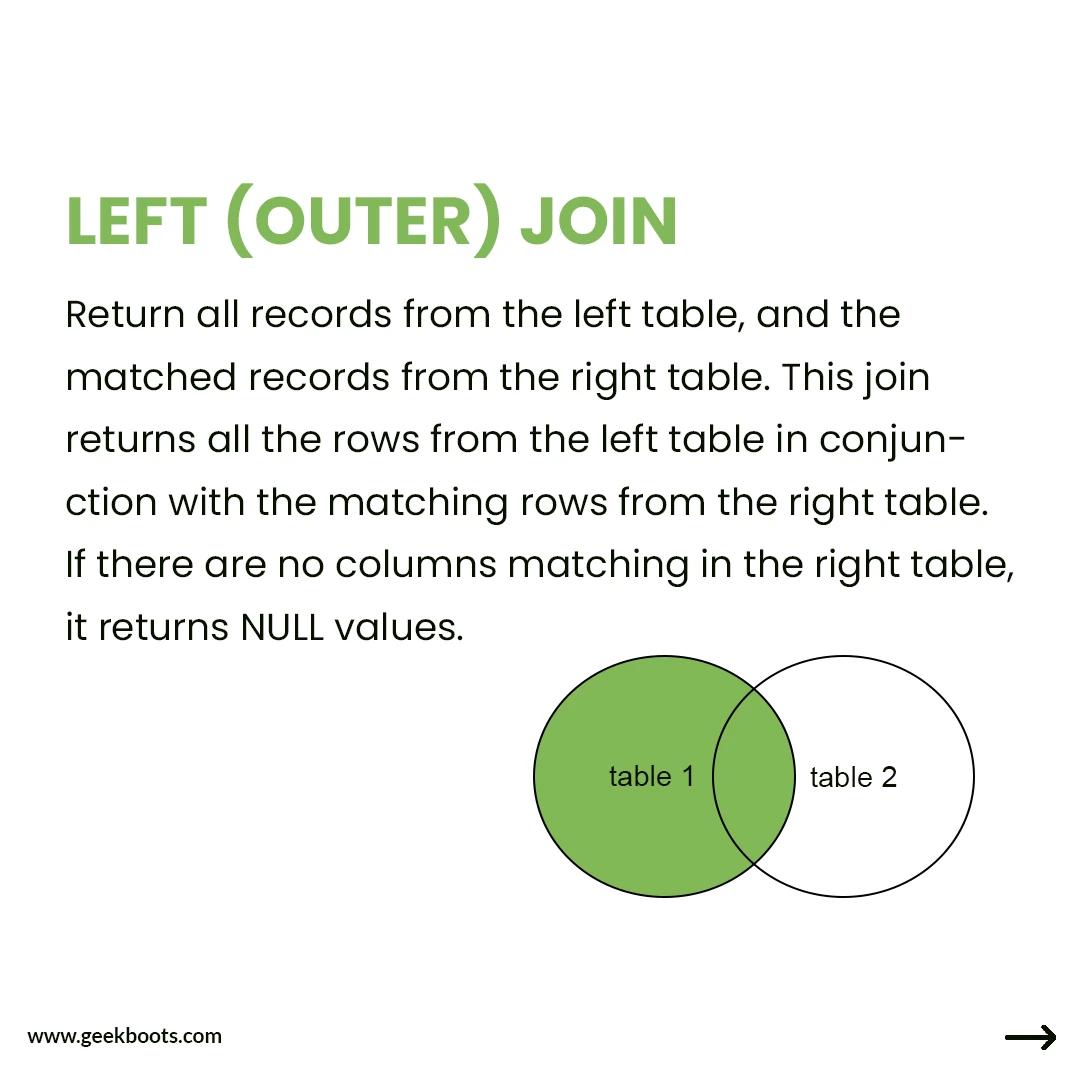

3. LEFT (OUTER) JOIN

Return all records from the left table, and the matched records from the right table. This join returns all the rows from the left table in conjunction with the matching rows from the right table. If there are no columns matching in the right table, it returns NULL values.

SELECT customers.customer_id, orders.order_id FROM customers LEFT JOIN orders ON customers.customer_id = orders.customer_id;

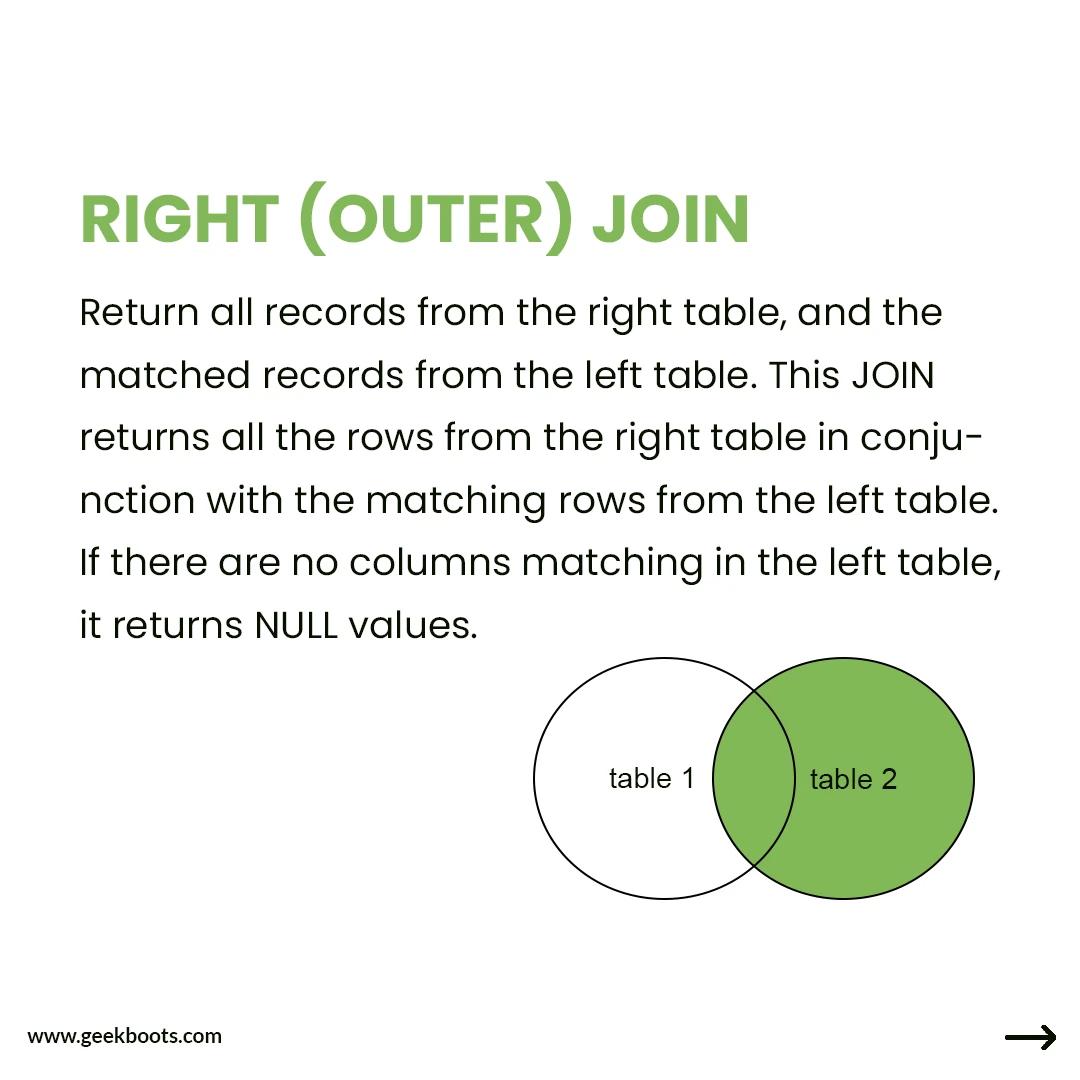

4. RIGHT (OUTER) JOIN

Return all records from the right table, and the matched records from the left table. This JOIN returns all the rows from the right table in conjunction with the matching rows from the left table. If there are no columns matching in the left table, it returns NULL values.

SELECT orders.order_id, order_details.product_name FROM orders RIGHT JOIN order_details ON orders.order_id = order_details.order_id;

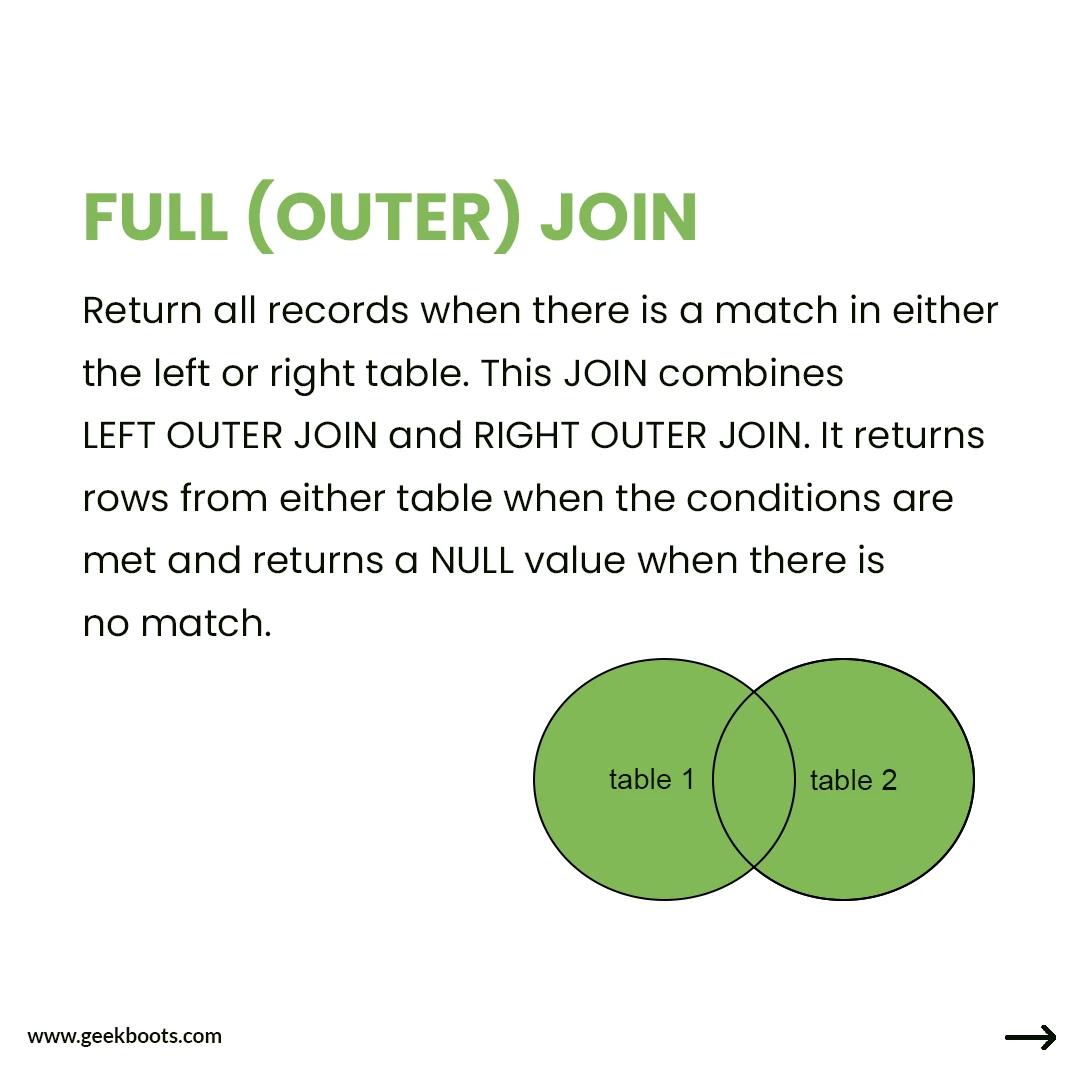

5. FULL (OUTER) JOIN

Return all records when there is a match in either the left or right table. This JOIN combines LEFT OUTER JOIN and RIGHT OUTER JOIN. It returns rows from either table when the conditions are met and returns a NULL value when there is no match.

SELECT employees.id, employees.name, departments.department_name FROM employees FULL JOIN departments ON employees.department_id = departments.id;

6. NATURAL JOIN

It is based on the two conditions-

  • The JOIN is made on all the columns with the same name for equality.

  • Removes duplicate columns from the result.

This seems to be more of theoretical in nature and as a result (probably) most DBMS don't even bother supporting this.

7. CROSS JOIN

It is the Cartesian product of the two tables involved. The result of a CROSS JOIN will not make sense in most of the situations. Moreover, we won't need this at all (or needs the least, to be precise).

8. SELF JOIN

It is not a different form of JOIN, rather it is a JOIN (INNER, OUTER, etc) of a table to itself.

Benefits of Using Joins

  • Data Integration: Combines information from multiple sources, providing a holistic view of your data.
  • Efficient Queries: Avoids writing multiple queries to retrieve related data, improving performance and reducing redundancy.
  • Enhanced Analysis: Enables deeper insights by combining data from different tables, uncovering hidden patterns and trends.

Choosing the Right Join

  • Inner Joins: Use when you only need records with matching values in both tables.
  • Left/Right Joins: Useful when you want all records from one table and the matching records from the other.
  • Full Joins: When you need all records from both tables, whether they have matches or not.

Conclusion

SQL joins are the bedrock of relational database queries, allowing us to weave together data from different tables seamlessly. Understanding the nuances of each join type empowers developers and data analysts to extract meaningful insights from complex datasets. The choice of join depends on the specific requirements of your query and the relationships between the tables involved, making SQL joins a versatile tool in the database professional's toolkit.
